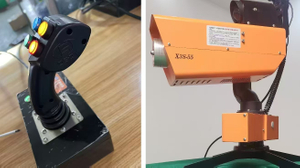

The PSKD Explosion-Proof Electric-Controlled Monitor (standard name "Fixed Fire Monitor") primarily comes in two types: regular and explosion-proof. It mainly consists of a control system, electric-controlled monitor body, fire-specific power supply system, electric-controlled valves, and water supply system. It offers three control methods: wired remote control, wireless remote control, and on-site control from the fire truck.
The PSKD40Ex Explosion-Proof Electric-Controlled Monitor allows firefighters to operate the monitor's spray direction and angle from a safe distance away from the fire scene, effectively protecting the safety of the firefighters.
Electric control fire monitor | ||||||
mode | PSKD30 | PSKD40 | PSKD50 | PSKD30Ex explosion proof | PSKD40Ex explosion proof | PSKD50Ex explosion proof |
rated flow | 30L/S | 40L/S | 50L/S | 30L/S | 40L/S | 50L/S |
reaching range | 60M | 65M | 70M | 60M | 65M | 70M |
dimension | 655x540x530mm | |||||
connecting dimension | DN80 flange(other size is customized) | |||||
working pressure | 0.8Mpa | |||||
Power Consumption | AC220V / Monitoring: 1W, Scanning: 80W | |||||
Control Distance | Wired remote control distance: 200m, Wireless remote control: 150m | |||||
Explosion-Proof Grade | II BT4 | |||||
Rotation Angle | Horizontal rotation: 360°, Elevation: 30°, Depression: 90° |
